splot.giddy.dynamic_lisa_rose¶
-
splot.giddy.
dynamic_lisa_rose
(rose, attribute=None, ax=None, **kwargs)[source]¶ Plot dynamic LISA values in a rose diagram.
- Parameters
- rosegiddy.directional.Rose instance
A
Rose
object, which contains (among other attributes) LISA values at two points in time, and a method to perform inference on those.- attribute(n,) ndarray, optional
Points will be colored by chosen attribute values. Variable to specify colors of the colorbars. Default =None.
- axMatplotlib Axes instance, optional
If given, the figure will be created inside this axis. Default =None. Note: This axis should have a polar projection.
- **kwargskeyword arguments, optional
Keywords used for creating and designing the matplotlib.pyplot.scatter(). Note: ‘c’ and ‘color’ cannot be passed when attribute is not None.
- Returns
- figMatplotlib Figure instance
LISA rose plot figure
- axmatplotlib Axes instance
Axes in which the figure is plotted
Examples
>>> import geopandas as gpd >>> import pandas as pd >>> from libpysal.weights.contiguity import Queen >>> from libpysal import examples >>> import numpy as np >>> import matplotlib.pyplot as plt >>> from giddy.directional import Rose >>> from splot.giddy import dynamic_lisa_rose
get csv and shp files
>>> shp_link = examples.get_path('us48.shp') >>> df = gpd.read_file(shp_link) >>> income_table = pd.read_csv(examples.get_path("usjoin.csv"))
calculate relative values
>>> for year in range(1969, 2010): ... income_table[str(year) + '_rel'] = ( ... income_table[str(year)] / income_table[str(year)].mean())
merge to one gdf
>>> gdf = df.merge(income_table,left_on='STATE_NAME',right_on='Name')
retrieve spatial weights and data for two points in time
>>> w = Queen.from_dataframe(gdf) >>> w.transform = 'r' >>> y1 = gdf['1969_rel'].values >>> y2 = gdf['2000_rel'].values
calculate rose Object
>>> Y = np.array([y1, y2]).T >>> rose = Rose(Y, w, k=5)

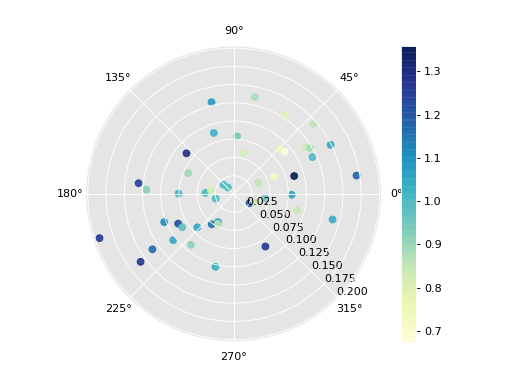

plot
>>> dynamic_lisa_rose(rose, attribute=y1) >>> plt.show()
(Source code, png, hires.png, pdf)
customize plot
>>> dynamic_lisa_rose(rose, c='r') >>> plt.show()
